Description

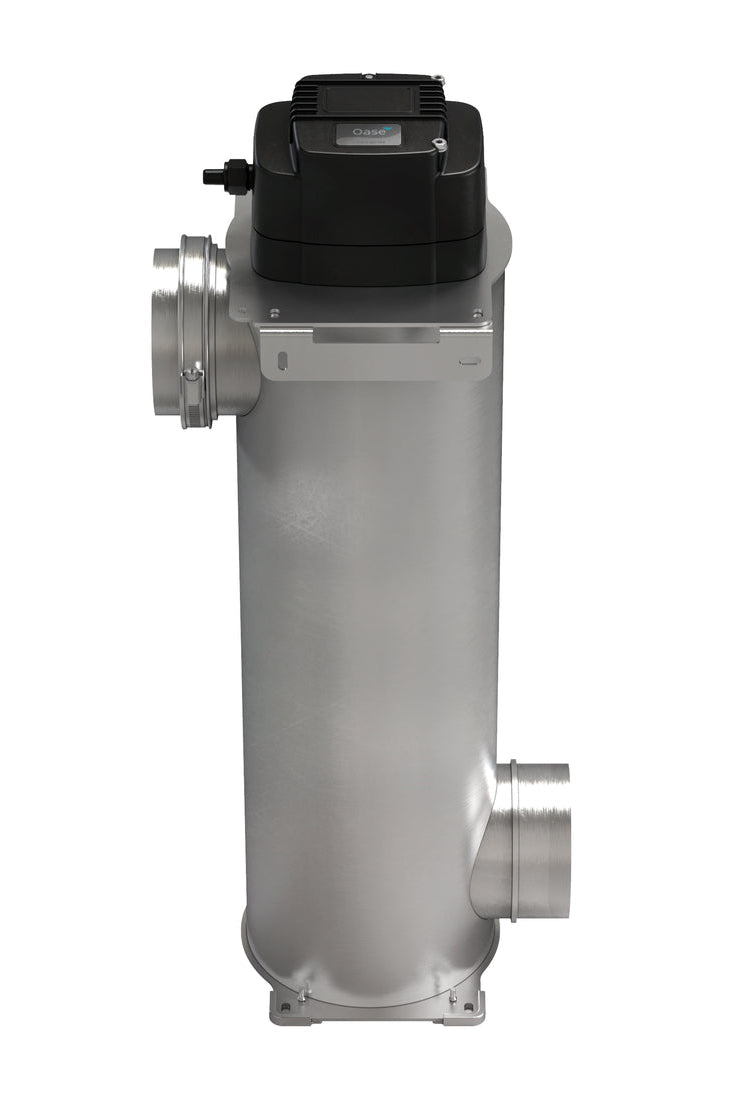

OASE Bitron Premium 60W
A highly efficient UVC clarifier designed to ensure crystal-clear, healthy pond water. Suitable for ponds up to 90 m³, it provides exceptional elimination of algae and harmful bacteria, offering the same powerful results as an immersion UVC system. Featuring a flow-optimised design for maximum UV exposure and a long water retention time, it guarantees superior sterilisation performance. The Bitron Premium can be installed either horizontally or vertically, and it integrates seamlessly with OASE ProfiClear filter systems or other gravity-fed applications. Built with durable plastic and stainless steel components, it delivers reliability, flexibility, and safety with 100% eye protection.
Key Features
-
Extremely effective removal of algae and pathogenic bacteria
-
Safe operation with complete protection against eye damage
-
Flow-optimised reactor design ensures efficient UV exposure and minimal loss
-
Guarantees clear water when used with OASE ProfiClear filter systems
-
Can be installed horizontally or vertically for flexible positioning
-
Suitable for both gravity-fed and pump-fed systems
-
Expandable system – additional Bitron Premium units can be added for larger ponds or increased fish stock
-
Easy to connect before or after the filter system
-
Visual function check for simple operation monitoring
-
Robust, high-quality construction with stainless steel fasteners
-
Compatible with OASE AquaMax and ProfiClear systems
Technical Data
| Specification | Details |
|---|---|
| Dimensions (L × W × H) | 700 × 290 × 205 mm |
| Rated Voltage | 220 – 240 V / 50–60 Hz |
| Power Consumption | 60 W |
| Power Cable Length | 5 m |
| Net Weight | 7.8 kg |
| Warranty | 2 Years |
| UVC Power | 60 W |
| Function Check | Visual |
| Inlet Connection | DN 110 |
| Outlet Connection | DN 110 |
| Number of Inlets | 1 |
| Number of Outlets | 1 |
| Max. Flow Rate | 40,000 L/h |
| Recommended Flow Rate (Gravity-Fed) | 16,500 L/h |
| Max. Operating Pressure | 0.6 bar |
| Suitable for Ponds (No Fish) | Up to 90 m³ |
| Suitable for Ponds (Fish Stock) | Up to 50 m³ |
| Suitable for Ponds (Koi) | Up to 33 m³ |
| Material | Plastic / Stainless Steel |
| Connection To | AquaMax, ProfiClear |
| Installation Type | Gravity-fed or Pump-fed system |
Why Choose OASE
-
Professional-grade UV clarification for large ponds and koi systems
-
Outstanding performance with proven clear-water results
-
Safe, durable, and built with premium German engineering
-
Simple installation and maintenance
-
Expandable and fully compatible with OASE filtration setups
