Description

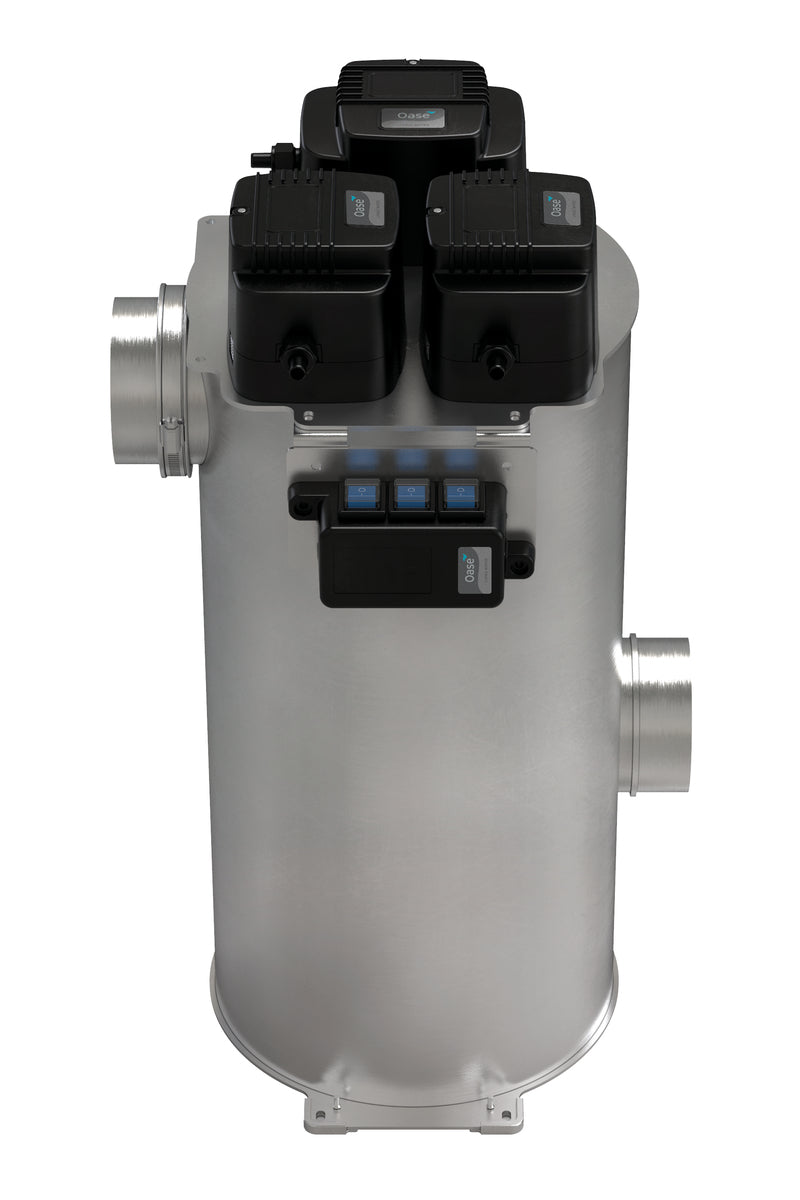

OASE Bitron Premium 180W
A top-tier UVC clarifier engineered for large ponds and professional filtration systems. Suitable for ponds up to 280 m³, it provides extremely effective removal of algae and harmful bacteria, delivering the same sterilising power as an immersion UVC. The advanced flow-optimised reactor design ensures prolonged UV exposure and near loss-free irradiation, resulting in maximum water clarity and health. The Bitron Premium 180W can be installed horizontally or vertically, before or after the filter system, and additional units can be added to expand capacity as your pond grows. Built with high-quality plastic and stainless steel components, it combines superior durability, flexibility, and efficiency for demanding aquatic environments.
Key Features
-
Powerful elimination of algae and pathogenic bacteria
-
Complete eye protection with 100% safety design
-
Flow-optimised reactor chamber ensures maximum UV effectiveness
-
Clear water guarantee when used with OASE ProfiClear filter systems
-
Energy-efficient operation via electronic ballast
-
Long water retention time enhances sterilisation performance
-
Flexible installation: can be mounted horizontally or vertically
-
Connects easily before or after the filter system in gravity-fed or pump-fed setups
-
Expandable system – additional Bitron Premium units can be added as required
-
Visual function check for quick and simple monitoring
-
High-quality construction using plastic and stainless steel
-
Individual lamp control for independent switching of each 90W lamp
-
Compatible with OASE AquaMax and ProfiClear filtration systems
Technical Data
| Specification | Details |
|---|---|
| Dimensions (L × W × H) | 700 × 417 × 340 mm |
| Rated Voltage | 220 – 240 V / 50–60 Hz |
| Power Consumption | 180 W |
| Power Cable Length | 7 m |
| Net Weight | 17.4 kg |
| Warranty | 2 Years |
| UVC Power | 180 W |
| Function Check | Visual |
| Inlet Connection | DN 110 |
| Outlet Connection | DN 110 |
| Number of Inlets | 1 |
| Number of Outlets | 1 |
| Max. Flow Rate | 100,000 L/h |
| Recommended Flow Rate (Gravity-Fed) | 50,000 L/h |
| Max. Operating Pressure | 0.6 bar |
| Suitable for Ponds (No Fish) | Up to 280 m³ |
| Suitable for Ponds (Fish Stock) | Up to 160 m³ |
| Suitable for Ponds (Koi) | Up to 100 m³ |
| Material | Plastic / Stainless Steel |
| Connection To | AquaMax, ProfiClear |
| Installation Type | Gravity-fed or Pump-fed system |
Why Choose OASE
-
Professional-grade UVC clarifier for large koi and garden ponds
-
High output and energy-efficient sterilisation
-
Robust German construction built for long service life
-
Flexible installation and expandable system design
-
Proven OASE quality with reliable, maintenance-friendly operation
