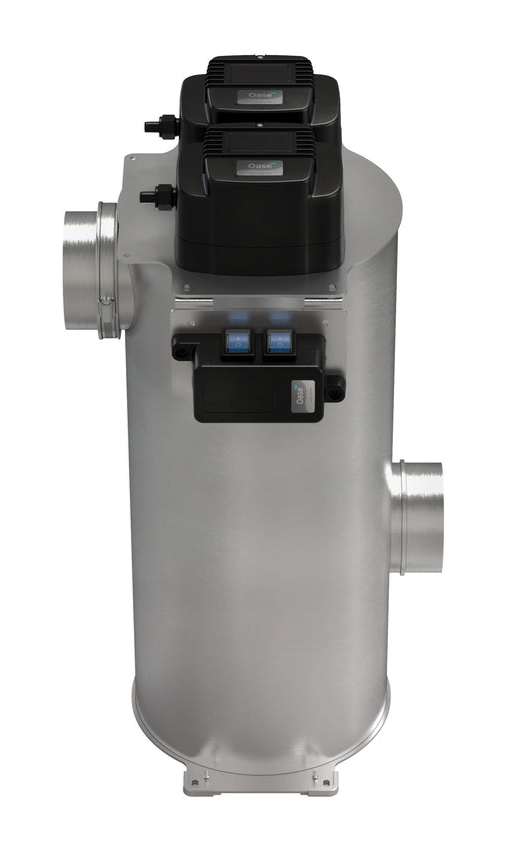

OASE Bitron Premium 120W
A high-performance UVC clarifier designed to maintain crystal-clear and healthy pond water. Suitable for ponds up to 185 m³, it delivers exceptional control over algae and pathogenic bacteria with the same powerful effect as an immersion UVC. Featuring a flow-optimised reactor design, the Bitron Premium 120W ensures maximum UV exposure with minimal energy loss. The electronic ballast provides energy-efficient operation, while the long water retention time guarantees highly effective sterilisation. It can be installed horizontally or vertically, before or after the filter system, and additional units can be added to accommodate larger ponds or expanding fish populations. Built with high-quality plastic and stainless steel, it offers professional-grade performance and durability.
Key Features
-
Powerful elimination of algae and pathogenic bacteria
-
100% protection against eye damage during operation
-
Flow-optimised reactor design for maximum UV exposure and efficiency
-
Guarantees clear water when used with OASE ProfiClear filter systems
-
Energy-efficient electronic ballast reduces power consumption
-
Flexible installation: horizontal or vertical orientation
-
Can be positioned upstream or downstream of the filter system
-
Expandable — additional Bitron Premium units can be added for larger ponds or increased fish stock
-
Visual function check for quick operational monitoring
-
Robust construction using high-quality plastic and stainless steel
-
Individual lamp control allows independent switching for each 60W tube
-
Compatible with OASE AquaMax and ProfiClear systems
-
Suitable for both gravity-fed and pump-fed applications
Technical Data
| Specification | Details |
|---|---|
| Dimensions (L × W × H) | 700 × 387 × 305 mm |
| Rated Voltage | 220 – 240 V / 50–60 Hz |
| Power Consumption | 120 W |
| Power Cable Length | 7 m |
| Net Weight | 13.1 kg |
| Warranty | 2 Years |
| UVC Power | 120 W |
| Function Check | Visual |
| Inlet Connection | DN 110 |
| Outlet Connection | DN 110 |
| Number of Inlets | 1 |
| Number of Outlets | 1 |
| Max. Flow Rate | 70,000 L/h |
| Recommended Flow Rate (Gravity-Fed) | 33,000 L/h |
| Max. Operating Pressure | 0.6 bar |
| Suitable for Ponds (No Fish) | Up to 185 m³ |
| Suitable for Ponds (Fish Stock) | Up to 100 m³ |
| Suitable for Ponds (Koi) | Up to 66 m³ |
| Material | Plastic / Stainless Steel |
| Connection To | AquaMax, ProfiClear |
| Installation Type | Gravity-fed or Pump-fed system |
Why Choose OASE
-
Proven clear-water results with professional-grade UV performance
-
Energy-efficient and designed for large pond systems
-
Robust German construction with long-lasting components
-
Simple installation and visual function check
-
Fully compatible with OASE filtration and pump systems
