Description

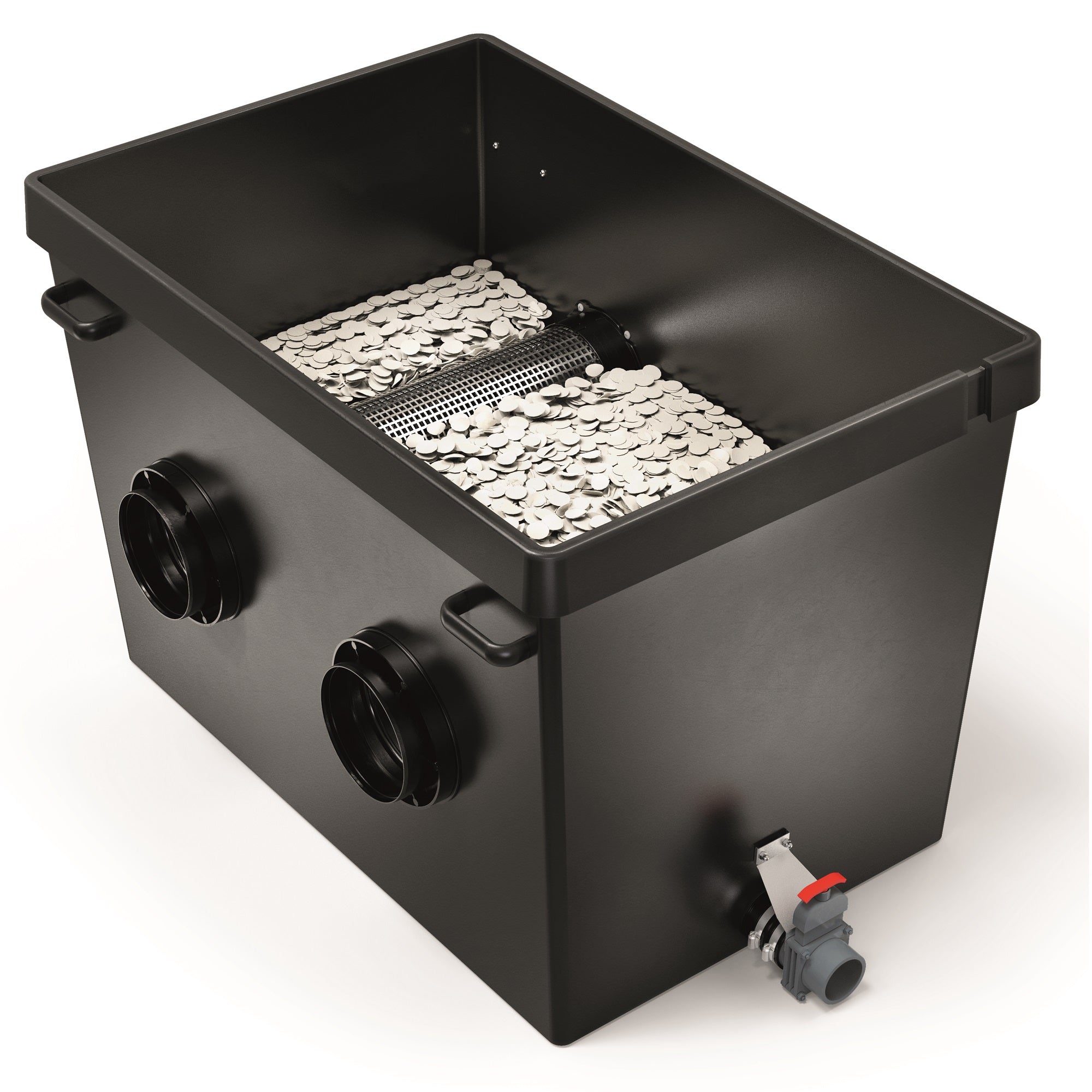

Professional modular filter system for large natural and swimming ponds up to 530 m³ and koi ponds up to 100 m³ for outstanding water quality in the smallest of spaces – thanks to particularly high filter performance with intelligent control functions and intelligent self-cleaning function for unique freedom from maintenance (drum filter module). All settings can be conveniently controlled via APP by connecting the system to the OASE Control System. The removal of pollutants is even more effective thanks to the high-performance OASE PondPads filter media and develops its optimum performance in the new fluidised bed process (moving bed). For large pond owners who want more, high degradation rates of ammonium, ammonia, nitrite and nitrate through larger Moving Bed modules for up to 150 litres of Hel-X, especially in combination with the new OASE PondPads biofilter media, ensure even greater performance.
- Mature, professional technology with more than three years of development time
- Highly effective decomposition of pollutants and nutrients thanks to professional filter media in the fluidised bed process
- Incl. 60 litres OASE PondPads
- Alternatively with 100 liters Hel-X available. (Item no .: 76557)
- Innovative and reliable product »Made in Germany«
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
| Net weight | kg | 83.00 |
| Limited Warranty | Years | 2 + 1 |
| Biological filter surface protected | m2 | 330.0 |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 180 |
| Number of outlets | Units | 2 |
| Outlet connections | 180 mm | |
| Sludge discharge connections | DN 75 | |
| Min. flow rate | l/h | 25000 |
| Max. flow rate | l/h | 66000 |
| Connection to | AquaOxy 5000, ProfiClear Premium DF-XL pump-fed, ProfiClear Premium DF-XL gravity, ProfiClear Premium XL pump-fed drain module, ProfiClear Premium XL gravity-fed drain module | |
| Installation height above water level | cm | 8.5 |
| Type of use | Gravity fed system, Pump fed system | |
| Other | Aeration pre-installed Pollutant discharge incl. slide valve |
|
| Temperature display | No | |
| Inlet connections | 180 mm |
