Description

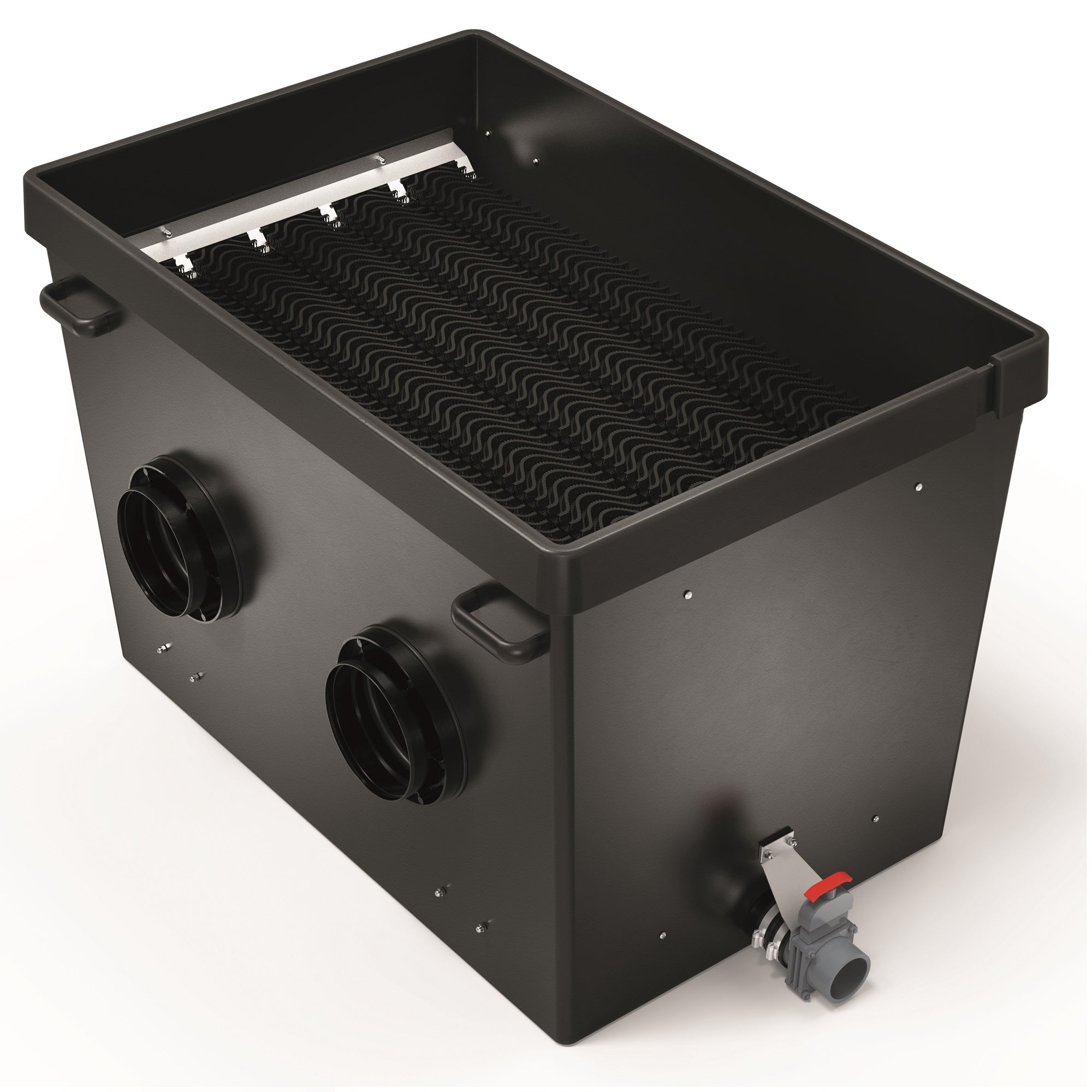

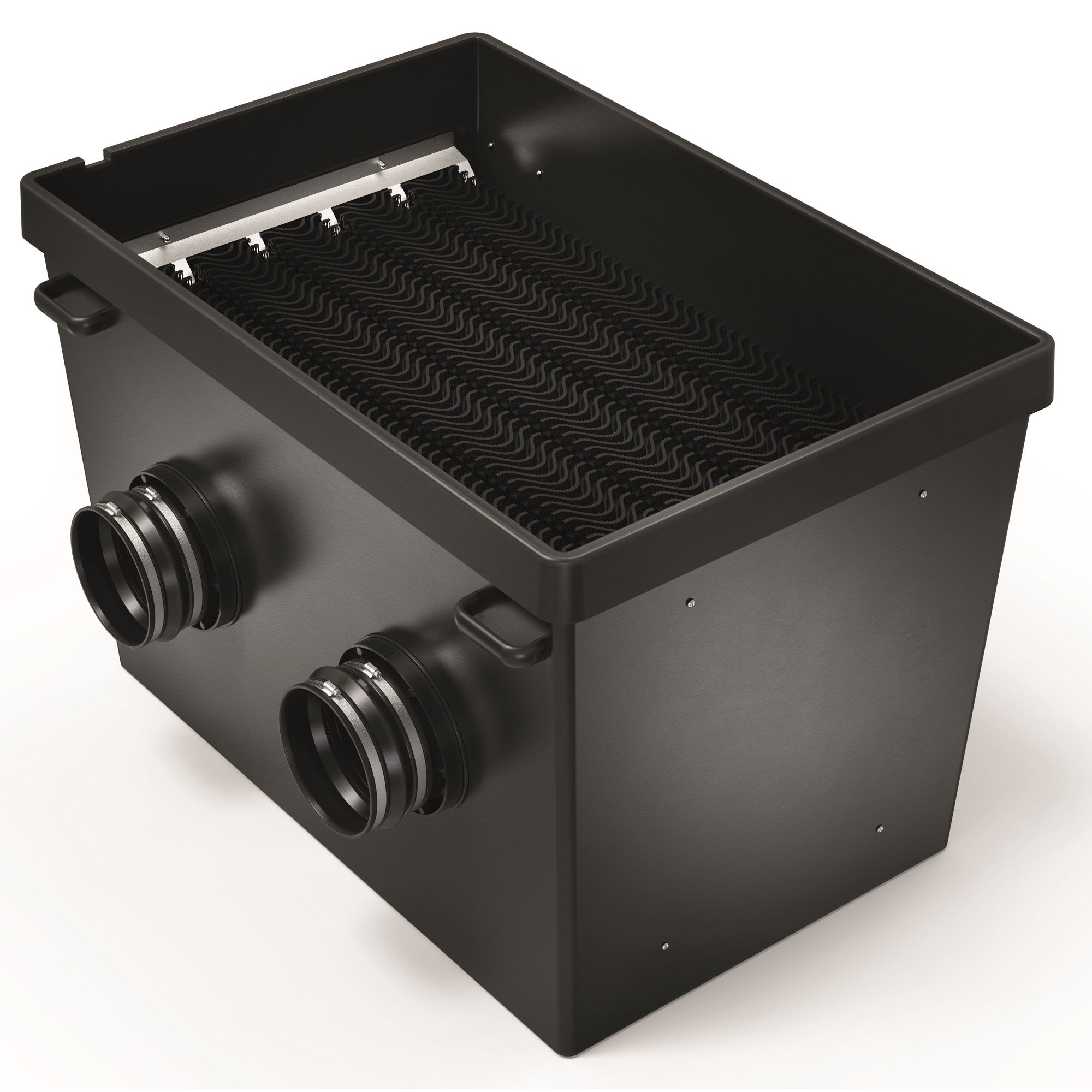

The advantage of fixed bed filters is obvious: entire "communities" of cleaning microorganisms develop from billions and billions of filter bacteria. With its curved, dense ClearWave blocks, the OASE ProfiClear Premium Standing Bed Module XL offers the perfect surface for the colonisation of the bacterial cleaning column, which effectively breaks down pollutants and nitrogen compounds. In the system, the module gives the pond water the finishing touch for absolute clarity. Up to 66,000 litres of water flow through the chamber every hour. An integrated bottom drain with slide valve makes filter flushing convenient. Made of high-quality, glass fibre-reinforced plastic (GRP duroplast), the filter housing is extremely UV and temperature resistant and therefore extremely durable. For the best result, an OASE ProfiClear Premium XL drum filter is installed upstream of the module.
- CLEARWAVE BLOCKS: The extremely dense filter structure creates the largest possible inner surface, ideal for the colonisation of filter bacteria
- DRUM FILTER CONNECTORS: To achieve the best filtration results, a ProfiClear Premium L or XL drum filter is placed upstream of the module
- EASY TO CLEAN: Open the gate valve and the water will quickly drain away. The filter can then be conveniently removed for cleaning and maintenance and then reassembled.
- OPTIONAL VENTILATION: You can add oxygen with the optional additional ventilation – this is an additional boost for even more water-cleaning filter bacteria activity
- ROBUST HOUSING: Made from high-quality glass-fibre reinforced plastic (GRP Duroplast), the housing is extremely resistant to UV and temperature and therefore very long-lasting.
| Dimensions (L x W x H) | mm | 1330 x 875 x 820 |
| Net weight | kg | 102.00 |
| Limited Warranty | Years | 2 + 1 |
| Biological filter surface protected | m2 | 37.0 |
| Material | GRP Duroplast | |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 180 |
| Number of outlets | Units | 2 |
| Outlet connections | DN 180 | |
| Sludge discharge connections | DN 75 | |
| Min. flow rate | l/h | 25000 |
| Max. flow rate | l/h | 66000 |
| Connection to | ProfiClear Premium DF-XL gravity | |
| Installation height above water level | cm | 8.5 |
| Type of use | Gravity fed system, Pump fed system | |
| Other | Aeration pre-installed Pollutant discharge incl. slide valve |
|
| Inlet connections | DN 180 |
