Description

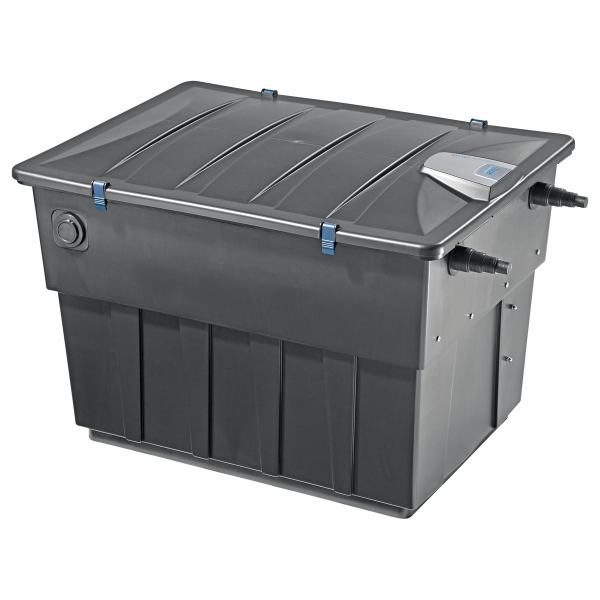

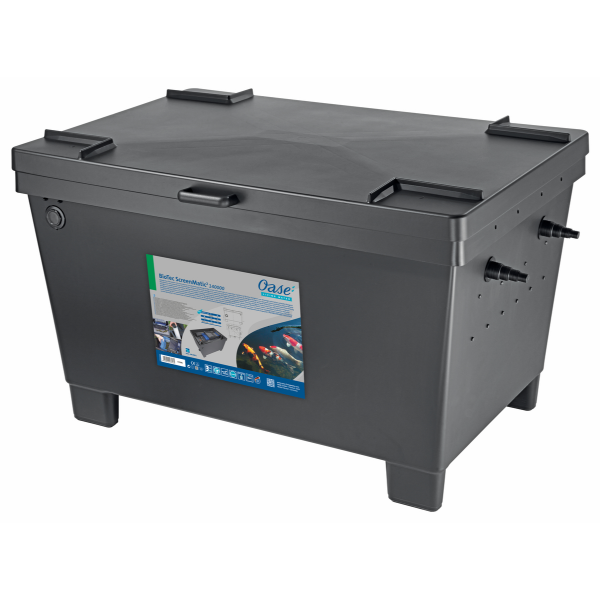

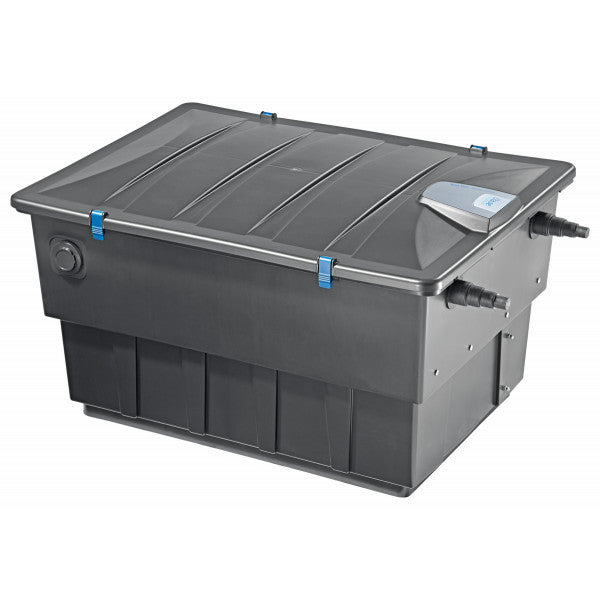

Oase BioTec ScreenMatic² Pond Filter – Overview
The Oase BioTec ScreenMatic² is a flow-through pond filter designed to make pond maintenance as hassle-free as possible. Unlike many other filters, it separates coarse debris before it even enters the filter sponges, significantly reducing cleaning frequency.
Its adjustable automatic cleaning system ensures efficient dirt separation, while the water distributor prevents clogging. Innovative dirt barriers stop the filter from washing out, further minimising maintenance.
In addition to being low-maintenance, the Oase BioTec ScreenMatic² offers a long service life, thanks to its double-sealed motor and reinforced strap material. It's compatible with various filter media, allowing optimal filter bacteria development, and can be used with PhosLess filter media tubes for string algae reduction.
The unit connects directly to Bitron UVC clarifiers and AquaMax Eco pumps, ensuring effective biological and mechanical filtration for clear, healthy pond water.
Key Features
-
Minimal maintenance with automatic debris extraction
-
Durable design with double-sealed motor and reinforced strap
-
Efficient cleaning with adjustable cleaning system
-
Innovative barriers prevent filter washout
-
Direct sponge cleaning for convenience
-
Compatible with a variety of filter media for optimal bacteria growth
-
Optional PhosLess filter media for algae reduction
-
Compatible with AquaMax Eco pumps
-
Direct connection to Bitron C and Eco UVC clarifiers
-
Uniform water distribution prevents clogging
Specifications – BioTec ScreenMatic² 40000
-
Dimensions: 120 x 80 x 76 cm
-
Rated voltage: 230 V / 50 Hz, 12 V AC
-
Power consumption: 5 W
-
Inlet connection: 1", 1 1/4", 1 1/2"
-
Minimum flow rate: 4000 l/h
-
Maximum flow rate: 10000 l/h
-
Suitable for ponds up to: 40 m³
-
With fish stock: 20 m³
-
With koi: 10 m³
Specifications – BioTec ScreenMatic² 60000
-
Dimensions: 120 x 80 x 76 cm
-
Rated voltage: 230 V / 50 Hz, 12 V AC
-
Power consumption: 5 W
-
Inlet connection: 1", 1 1/4", 1 1/2"
-
Minimum flow rate: 6000 l/h
-
Maximum flow rate: 11000 l/h
-
Suitable for ponds up to: 60 m³
-
With fish stock: 30 m³
-
With koi: 15 m³
Specifications – BioTec ScreenMatic² 140000
-
Dimensions: 120 x 80 x 76 cm
-
Rated voltage: 230 V / 50 Hz, 12 V AC
-
Power consumption: 5 W
-
Inlet connection: 1", 1 1/4", 1 1/2", 2"
-
Minimum flow rate: 8000 l/h
-
Maximum flow rate: 17500 l/h
-
Suitable for ponds up to: 140 m³
-
With fish stock: 70 m³
-
With koi: 35 m³
